Fixing up a '71 Grand Safari

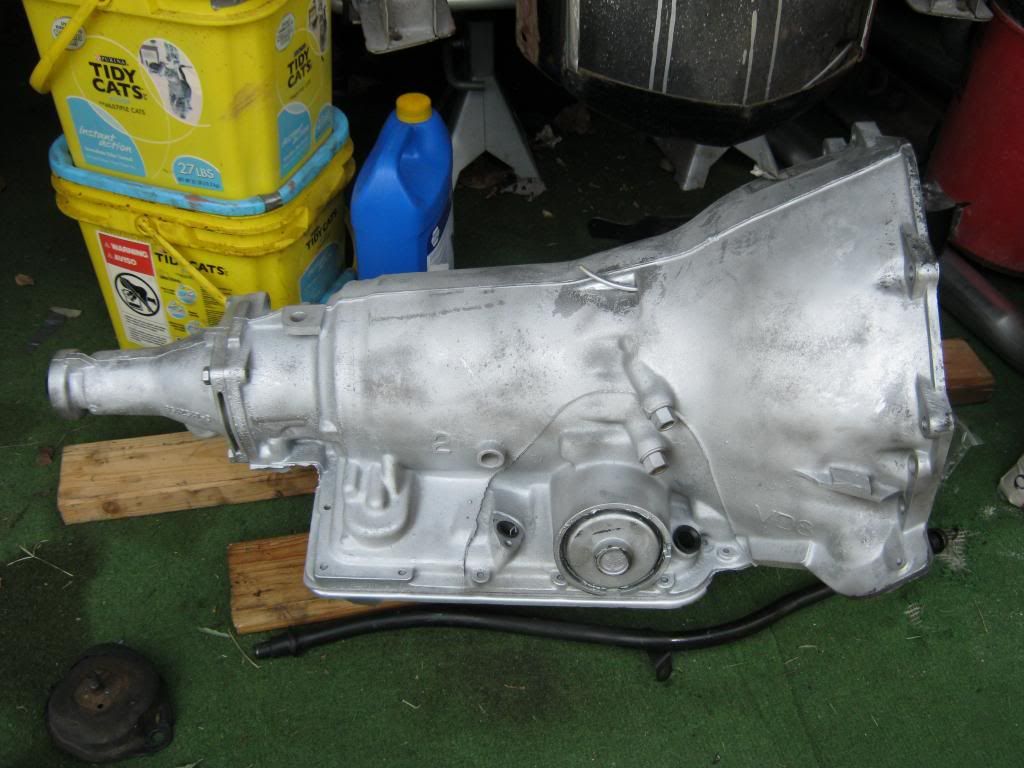

Here is the 700R4 waiting to be installed

I discovered that the 700R4 transmission is operated by the use of fluid pressure, which is controlled by a TV cable that runs from the transmission to the carburetor. I learned that the setup of this TV cable and its mounting to the carburetor is extremely critical to the life of the transmission. Even small variations of the TV mount's intended setup can cause the transmission to fail. It took many hours of research to learn the truth about how to properly setup these transmissions. I spent almost an entire week sitting up past midnight scouring the internet. There is a vast, vast amount of information and just as many opinions on how to install and setup these transmissions and going from zero knowledge to being able to weed through to the correct information is a timely and frustrating process. I called a company that supposedly specializes in these setups. After talking to me with a sorry attitude and tone, the owner took the information from my carburetor and I sent him pictures. I never heard from him again. He was supposed to determine which of their custom brackets would work and get back to me. I found his attitude to be so poor that I had little desire to contact him further. Also, I found their kits to be very pricey. I finally continued the research myself and determined what parts I would need and the basic idea of how to install them.

It seems that a throttle cable can simply be installed, but a TV cable must maintain perfect geometry in reference to the throttle arm. If the hole drilled in the throttle arm to mount the TV cable is not exactly the correct angle and distance from the center of the throttle shaft it will cause shifting problems and transmission failure. There are kits which bolt on, however none of these kits fit my specific application. Some people have found that particular years of carburetors that came with specific transmissions can be taken apart and the pieces can be installed in earlier style carburetors. Others have determined the exact measurements of where to drill the new mounting hole. Also, the TV cable must be supported by a mount that attaches either to the manifold or the rear of the carburetor. If you use a factory style TV cable from a vehicle from the 1980s, the spacing between the mounting point on the arm of the carb and the manifold/carburetor mount must match exactly as it did in its original setup. I found that there are aftermarket, universal TV cables which can be adjusted to fit any spacing needed.

This is my carburetor setup, which makes things a bit confusing because there are a lot of things in the way. The throttle cable, the cruise control cable and the rear mounting brackets leave little room for any of the available mounts.

​

After a lot of research I pieced together some parts from different kits and stores that had them available. Though far from the final result, this picture gives a good idea of how I will go about achieving the TV cable bracket. The plastic encasement for the TV cable will snap into the mount on the right, which I will have to cut apart and weld back together to fit my needs, and the mounting stud on the left is designed to fit the plastic clip on the end of TV cables and will be mounted on the end of the arm shown here. It may be necessary, after my measurements are complete, to weld extra material onto this arm to allow the stud to be mounted in the exact right location. It is also very important to keep the TV cable mount aligned with where the TV cable stud will be to allow the cable to maintain a straight angle and allow the cable to remain straight through its pull travel as the arm on the carburetor throttle plate swings forward when the gas is pushed. If necessary, the throttle return spring, shown in the picture, can be relocated, as it's placement is not critical.

​

Another issue I had was how to mount a 700R4, a Chevrolet transmission, to a Pontiac engine, and if it would fit. After what seemed like endless hours of research to determine if I should use a 700R4 or a 200-4R transmission, I decided to go with a 700R4. One downside to this was that a 200-4R transmission has a dual bolt pattern, which means it can bolt to a Chevrolet engine or it can bolt to the other set of GM engines that share their own bolt pattern, the Buick, Oldsmobile or Pontiac engines, which I found are commonly referred to as BOP engines. I then had to delve further into learning about the operation of the 700R4 transmission to determine how to get it to shift properly with my carburetor. Depending on what year vehicle the 700R4 was installed in determines how the transmission operated. A 700R4, which I will now refer to simply as a 700, is a four speed transmission, however there is also a feature called "torque converter lockup" which, as it implies, locks the torque converter up. I found this lockup is crucial to proper fluid transfer in the transmission and if not setup correctly can overheat the transmission. There are special non-lockup converters, but I did not have one of these. When the converter locks up, there is no slipping and it causes the transmission and engine to spin in a 1:1 ratio. This causes yet another, above and beyond the 4th gear overdrive, drop in RPM. Torque converter lockup can be achieved in a number of ways, and it can be disengaged in a number of ways. If a converter does not lock up it would be just like trying to stop a car with a manual transmission by putting your foot on the brake but not putting your foot on the clutch. Some people use an electronic kit to engage the torque converter. This kit can either use engine vacuum to automatically lock up the converter or it can be rigged to a switch under the dash which would cause the converter to be manually locked up whenever the driver chose. Often times a newer brake switch is installed such that when the brakes are pressed a signal is sent and the converter is disengaged. The other type of converter lockup, and the type which my transmission was equipped with by the shop that rebuild it, is called a hydraulic lock up switch. It consists of replacing internal parts of the transmission which cause the converter to lock up at certain pressures, which are related to RPM, no matter what gear the transmission is in. These pressures are controlled by a variety of different springs, which all have different strengths, and from those springs one that meets the needs of the shifting needs is selected to install. With this setup, no wires or vacuum lines are required to be run to the transmission.

Getting back to the physical mounting of the transmission, I found that there are adapter plates made that will allow a 700 to be mounted to a BOP engine. I ordered one of these mounts, but when I got it I encountered a few problems. First, the mount is supposed to install behind the flywheel, without the need of the flywheel being removed. Because of this I had just installed my flywheel beforehand and torqued the bolts to 95 ft/lbs, along with some blue locktite to keep them from coming loose. As this picture shows, there was not enough room to fit the adapter plate behind the flywheel and over the bellhousing dowels. Because of this I had to remove the flywheel shortly after I had just installed it.

​

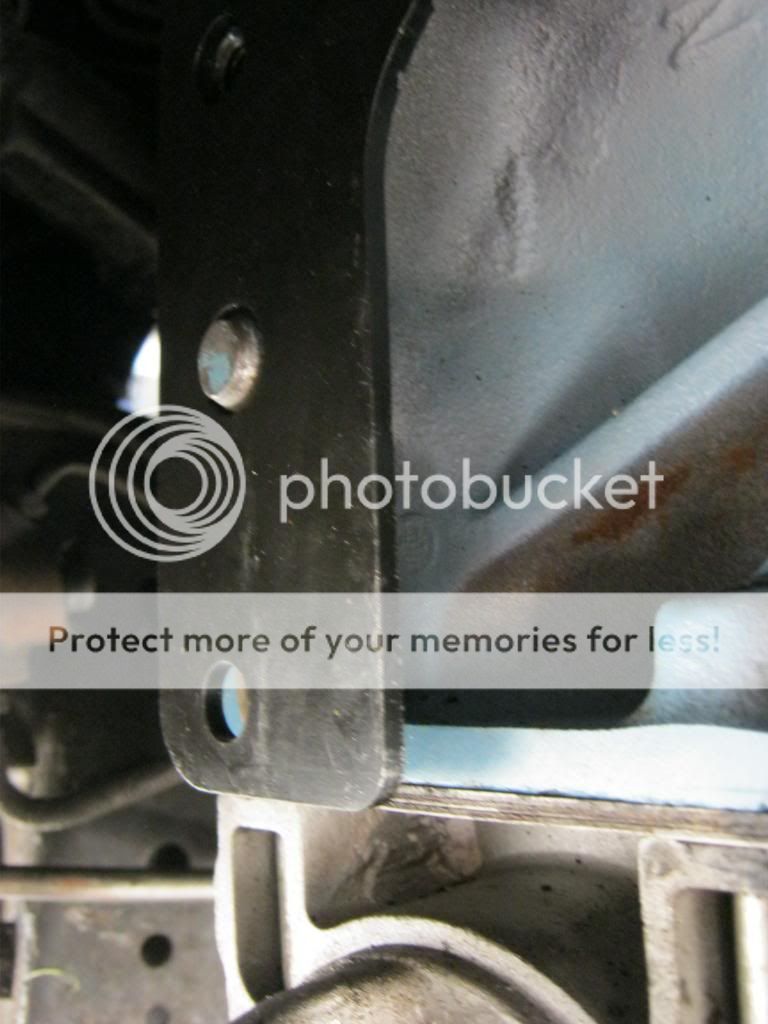

The next problem came when I found that my dowels would not fit through the dowel holes in the plate. I called the company and they said they had never encountered this problem before. I found out from them that GM used a typical 5/8" dowel across the board. Using a tape measure I found the dowel to be 5/8" and the hole to be 5/8" so I knew the difference had to be in the 1/1000ths of an inch. After calling the company that made the adapter and the company that sold it I then measured the dowel holes in the transmission itself and found they, too, were smaller than my dowels, yet they also measured the correct 5/8". For some reason, my dowels were machined too large, but only by a very small margin, and for some reason, my dowels had fit perfectly with the old TH400 I took out. It was with great difficulty I was able to come to this conclusion.

​

​

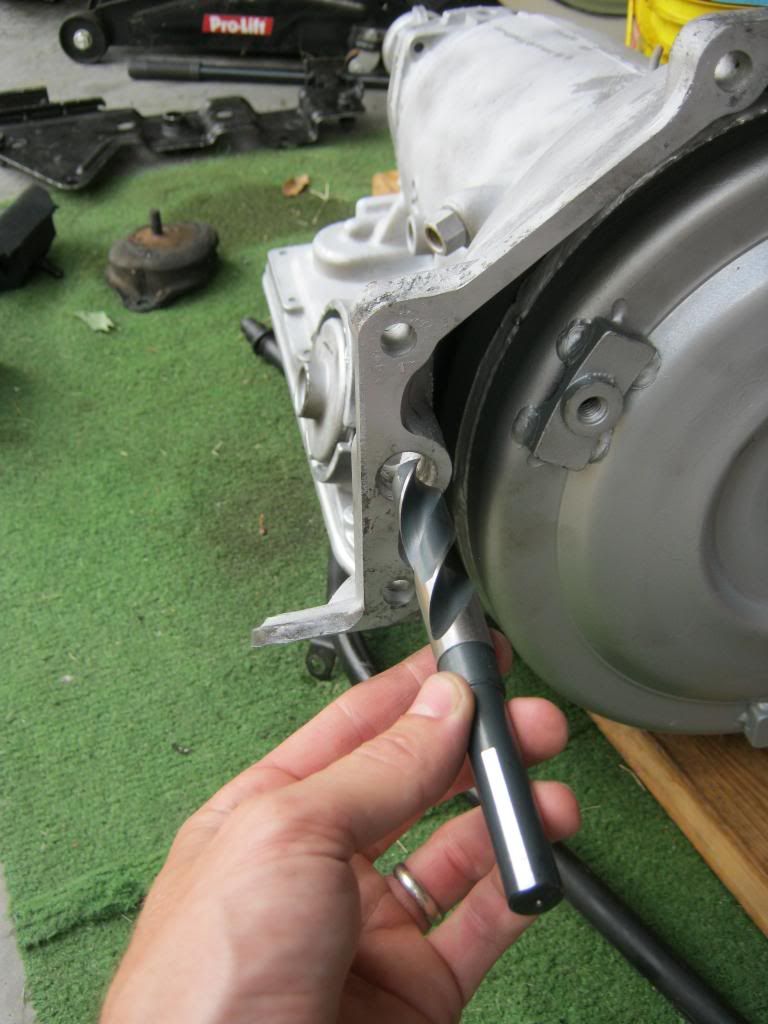

Due to the difficulty of removing engine dowels, my solution to this problem was to drill out the holes in the adapter plate and the transmission. I searched my dad's place for a 5/8" drill bit. He only had one and it was bent. I attempted several other neighbors and coincidentally for one reason or another they didn't have a 5/8" bit, though they had every other size. I ended up having to buy one, and it was almost $20 for just this one bit.

​

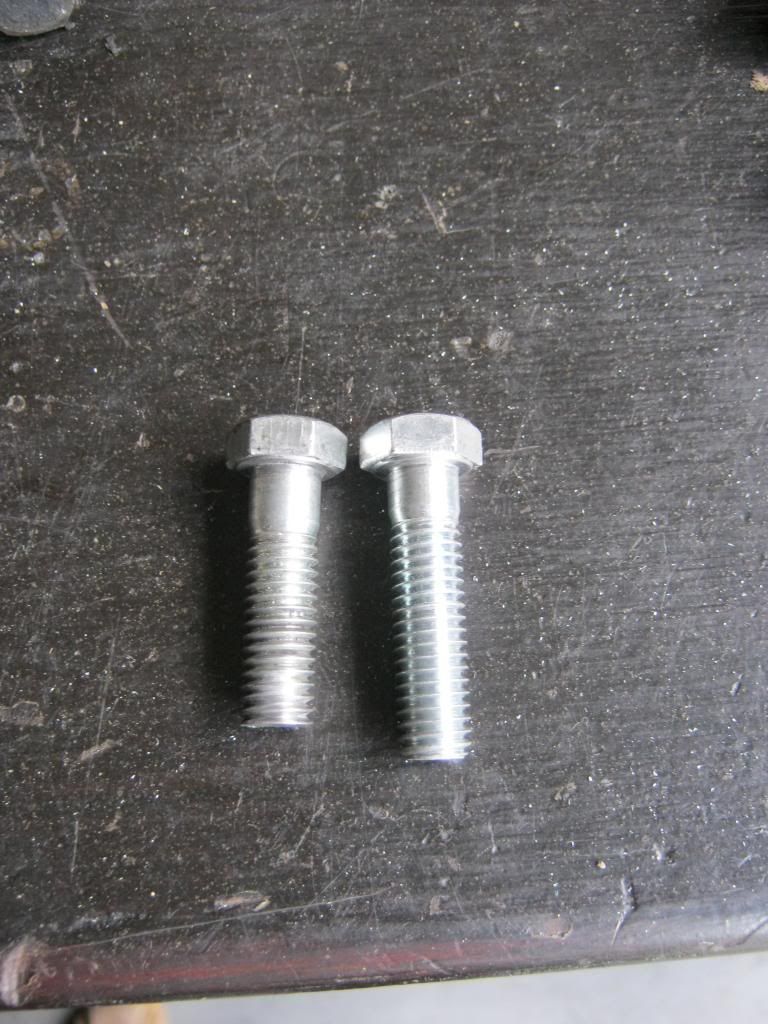

Though not in the instructions I also found it necessary to shorten the top two bolts of the bellhousing because the adapter plate relocates these bolts to fit inside the recess of the rear freeze plugs. At their original length the bolts were between 1/8-1/16" too long, depending on if you measured the left or right side.

​

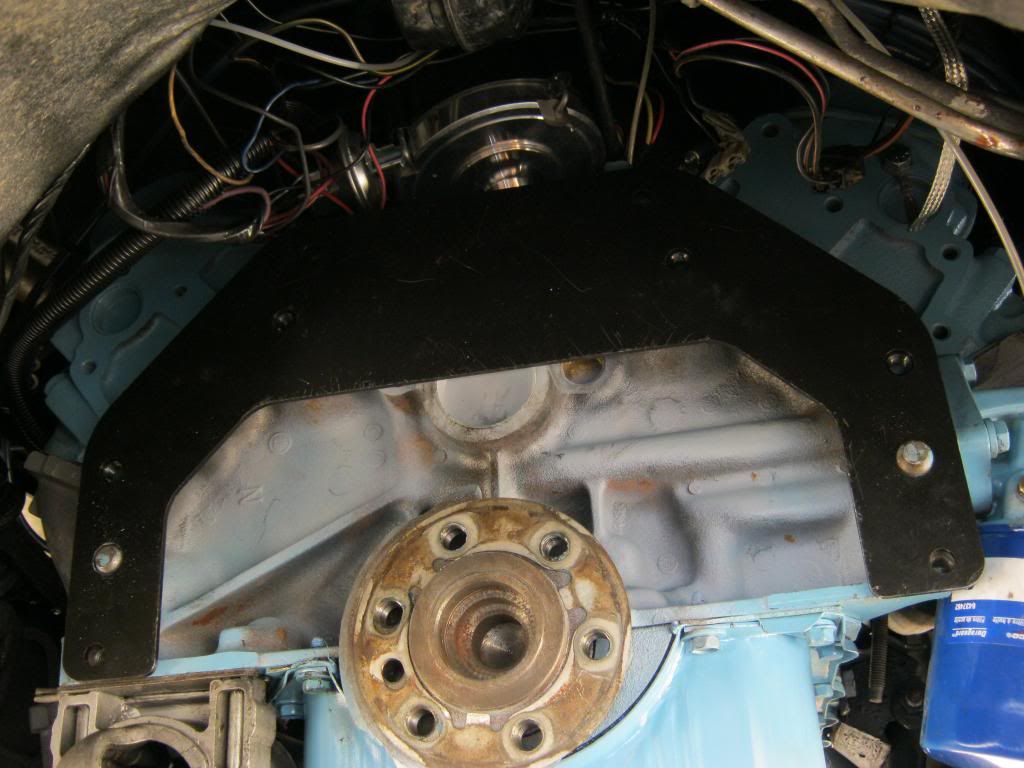

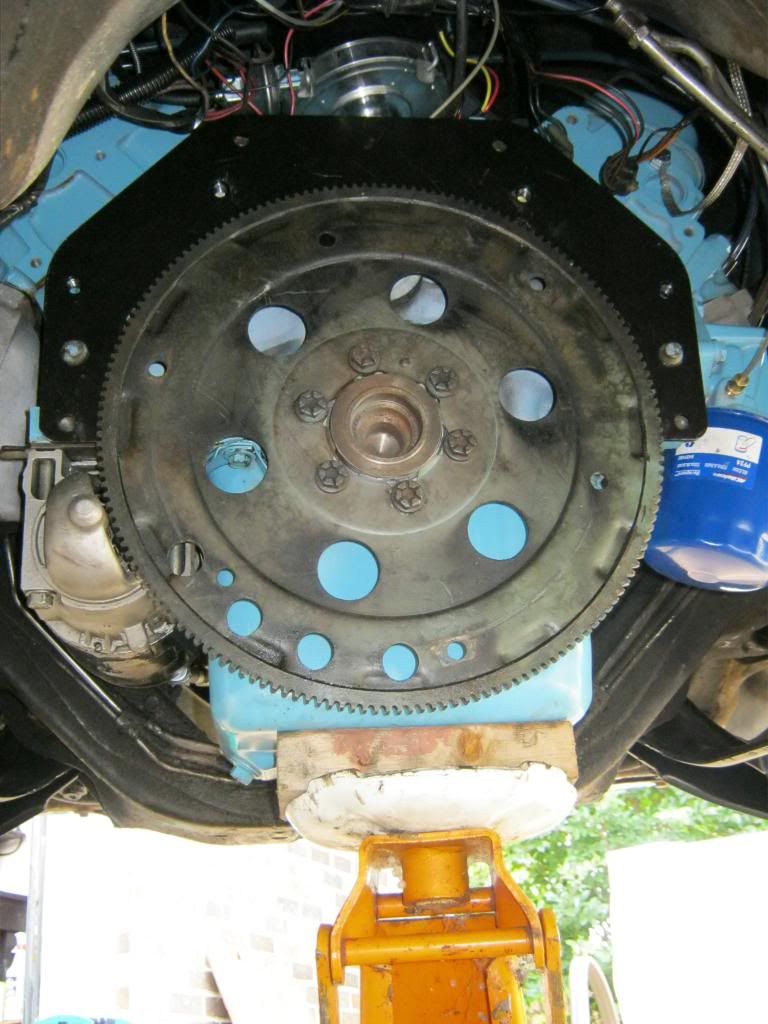

This is what the adapter plate looks like when installed correctly. The bottom holes on each side go directly into the original mounting holes in the block. The second hole from the bottom on each side is the dowel hole. The four mounting holes above that on each side have nuts welded onto the back of the plate. These are the new mounting locations for the 700. The outside two bolts allow the screw to go wide of the mounting surface, so their length is not of any importance, within reason of course. The top two bolts fit into the recess of the freeze plugs and if they are too long will cause damage to the brass plugs. There are two smaller holes, a bit closer together than any of the other holes. These two holes are the original top mounting holes for the old TH400 and are not used to mount the bellhousing. Two round-headed, allen head screws come with the kit and these are installed here to hold the adapter plate.

​

Other than the physical challenges of rolling around on concrete, the physical installation has yet to cause any real challenges. There is plenty of room in the transmission tunnel. The crossmember will require modification, however, but as of now I believe it can be done by slightly modifying the original crossmember rather than buying an expensive, custom one.

​

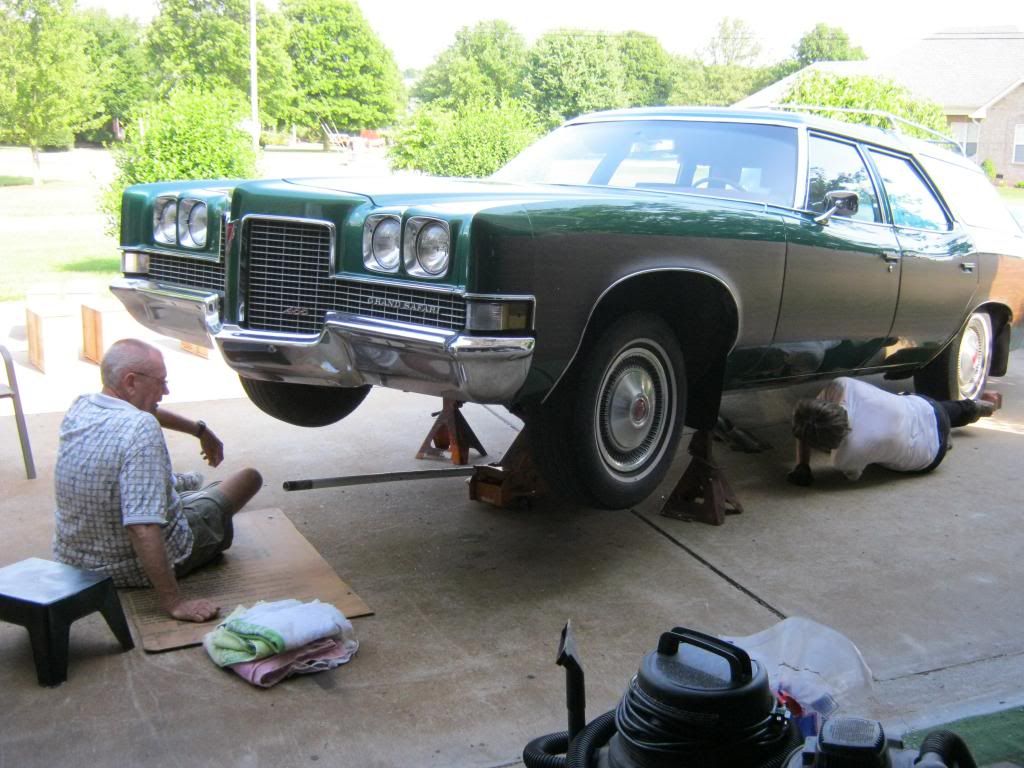

While dad manned the jack during installation, April stripped and painted a dresser that will become Rose's changing table.

​

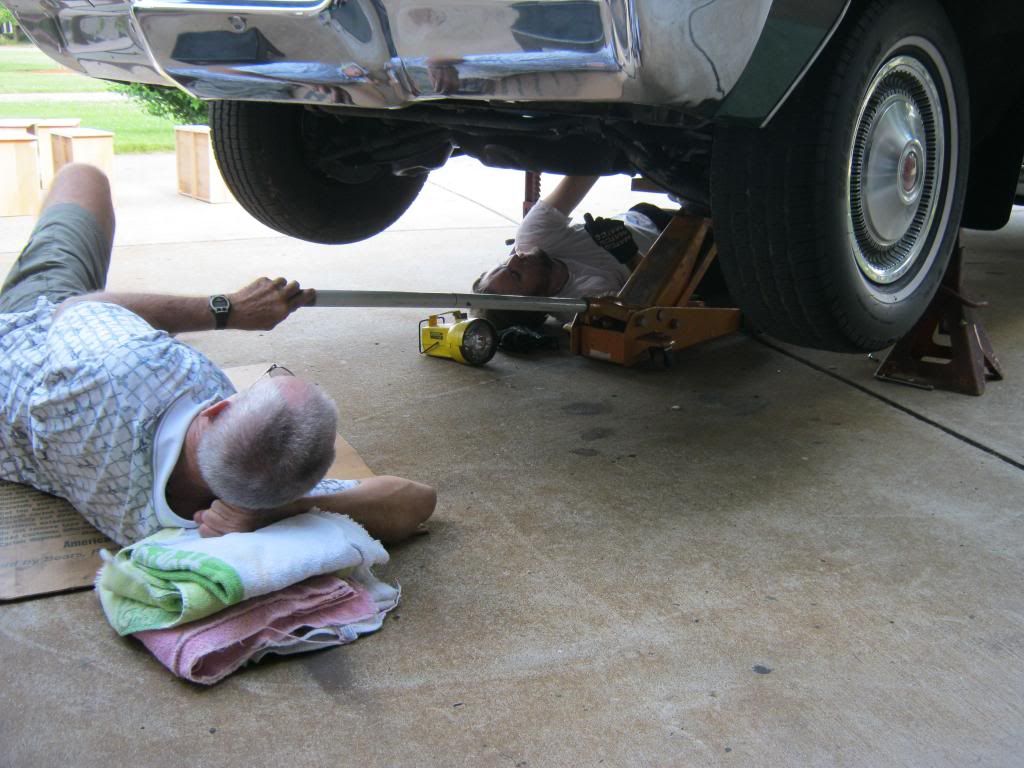

This is why I have had a crick in my neck for two weeks

​

​

​

After all of that, I just hurt everywhere from the waist up, but it was time to test fit the crossmember and see what modifications would be needed.

​

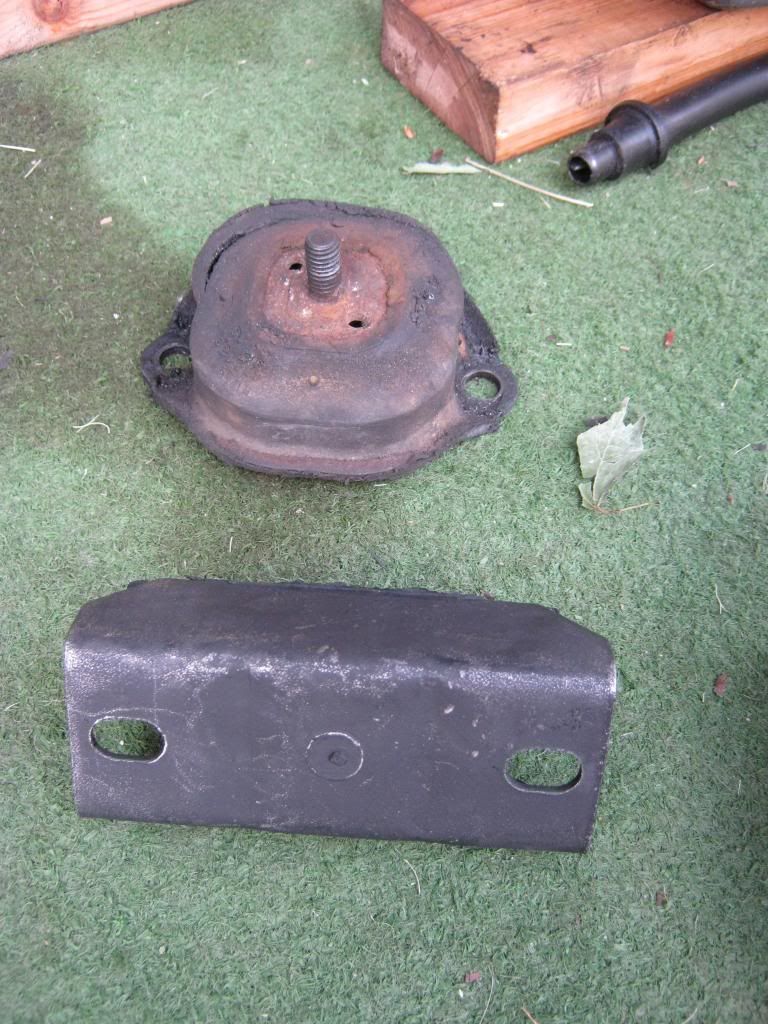

There were everal different tailshafts used on 700R4s, all of which have different lengths and mounting styles, depending on what it originally came out of. This shows the original TH400 mount on top and the new mount that I finally found that will fit my application. Not knowing what this transmission came out of made things a bit harder and would be good information to have before a swap next time.

​

I slid the crossmember forward from its original location, but I was not able to get it to go forward far enough to meet the bolt holes for the transmission mount. It needs about 1/4" more so I will probably have to trim some of the lip away from the front of the crossmember to allow room. When I get it fitted I will then have to drill new holes in the frame to mount the crossmember to the frame.

​

The transmission is now physically bolted to the engine, but nothing else is complete. I will need to get the crossmember finished before I can get a final measurement for the driveshaft, which I will have cut down or extended to fit.

​

This picture shows the spacers between the torque converter and the flywheel which are necessary to offset the width of the adapter plate. I almost died when I began to bolt my new converter to the flywheel and saw that it would not fit the original holes. I then saw that the flywheel had another set of holes for different applications, so I was able to turn it to the new holes and it bolted right up.

​



Well written, Brandon.

Your progress and tenacity are admirable!
Keep going; you're getting close!!!



Thanks for sharing the progress. A lot of it is over my head :confused: having never worked on a trans before but enjoyed reading the post and the pictures. The sidebar about the railroad was pretty cool. Seeing your pop helping out is priceless, treasure your time with him.



holy crap B !!!!
nice goin
and educational ta boot



Great Job, Brandon. You're getting there! It will be interesting to see what happens when you measure the driveshaft. My bet is you find that there is one the right length from a different G.M. car or truck. That would be a lot less than having yours modified or having one custom made.



Thanks everyone. Mike, that's a good idea. I hadn't thought of checking the length to see if another stock driveshaft might work. I'll definitely look into that.

Before I get to what I did today I'll go over a few pictures that I missed in the last post. I missed them because the website that I use to upload pictures changed formats and now rather than put the pictures in the order that I upload them, it places them in the order of their filename, despite the fact that I try to tell it not to. This means that sometimes a picture or series of pictures will get shuffled out of order and put behind some pictures I have already posted.

I accidentally entered a car show and got 3rd place. That story began when I woke up Saturday morning and had something in my eye. It hurt terribly bad, so bad in fact that I decided rather quickly I needed medical attention, but I wasn't able to go to the doctor immediately. My neighbor from two doors down bought a 1929 Model A roadster pickup at a yard sale. The problem is that he is 80 years old and he didn't tell his wife he bought it and needed my help taking it across town to store in a barn he has so she wouldn't find out. He showed up before my alarm went off so I went and borrowed my dad's trailer and we went to pick it up. He was very proud of it.

​

​

​

After we got his Model A tucked away we went home and I went to the eye doctor across town. There was a car show in town that day I had planned to go to but since I needed to get to the doctor we just took The Caprice, which hadn't been washed and had grass still on the carpet from Jacob's donut lessons several weeks ago in the field. As we were leaving Jacob called to see if he could ride with us to the car show so he hopped in and we headed out. After having my eye tended to and getting some drops to numb my ailing eyeball, we headed to the show. When we pulled up Jacob said he saw a sign that said "Free Admittance" so we pulled in, thinking we could park with the cars in the show and not have to walk as far. The next thing I know I'm in line with people asking me to fill out paper work and then pay $15.00 to enter the car show. It was too late to turn back and so we parked, got lunch and walked around. At the end, The Caprice ended up winning 3rd place, though I have to admit I don't think there could have been more than 3 or 4 cars in our category. Jacob seemed pretty proud of the trophy so I gave it to him. Woodson is visible in the background in the orange shirt. He won first place with his '56 Chevrolet.

​

I had previously mentioned that I was having trouble with the rear window sealing on the driver side of The Clam and it turned out that the window would not roll down far enough on that side. I did some investigation and after extensive reading of some complicated portions of the shop manual and exploring around the mechanicals of the window I found that there is a cam on the top, passenger side of the window that is held tight by a bolt. This cam allows the window to be moved and adjusted. I eventually found that the bolt that was supposed to hold the window in place was missing. In this picture I'm pointing to the location of the missing bolt.

​

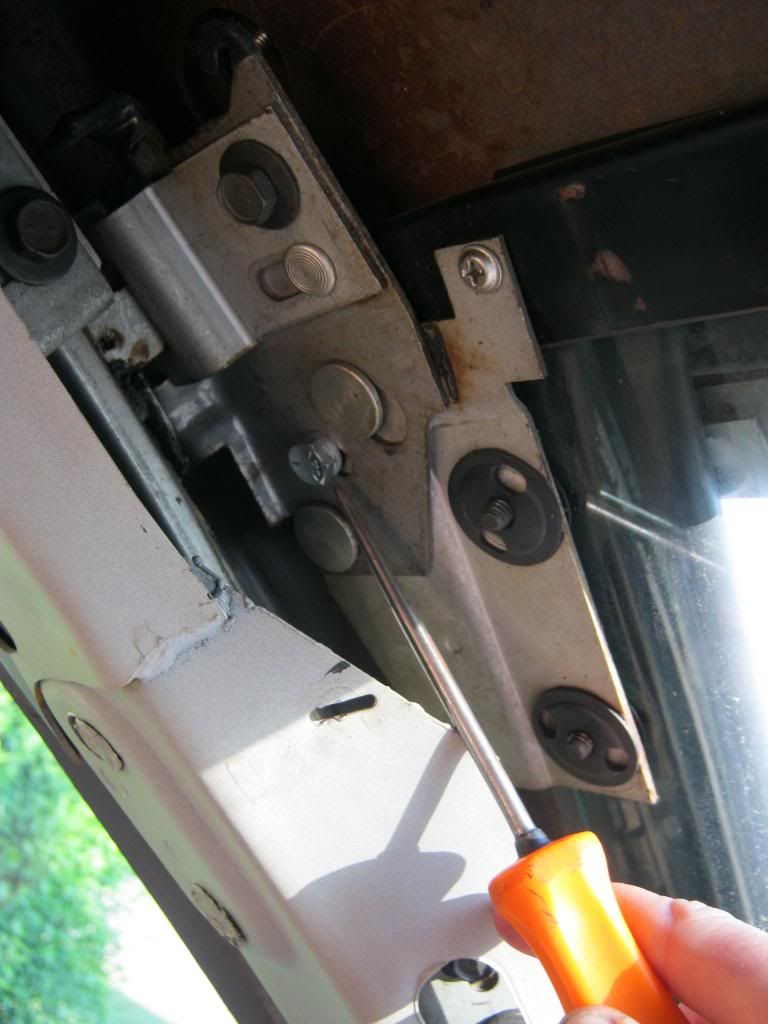

I had no way of knowing what size bolt was supposed to go in the location and feared I could possibly crack the glass if I got a bolt that was too long. I used a tap to find the correct threads and measured the depth using a small screwdriver. Once installed and tightened, the window rolled down far enough on both sides to seal against the new weatherstripping.

​

Today I began work on making the crossmember fit. I was able to slide the crossmember forward from its original location but still needed an extra 1/2-1/4". It turned out to be a very long 1/2-1/4". I ended up trimming the crossmember 3 times and then found that the exhaust humps interfered with the floorboard on the passenger side. After this I realized that the transmission mount did not have enough room to fit between the 700R4 and the crossmember, even when the transmission was raised far enough up to make contact with the floorboard. After realizing this I determined I would have to change my game plan, and that meant modifying the old mount by adding a new mounting pad onto the front. I began by welding back all the pieces I had just trimmed away, which I had saved for just such a situation. I then found a suitable piece of steel in my scrap pile. This particular piece is actually the first thing I ever welded. I picked it up at the scrap yard, cut it apart, flipped the ends and welded it back together for practice when I very first got my welder.

​

After reinstalling the crossmember several times for measurements I had a general idea of what I needed.

​

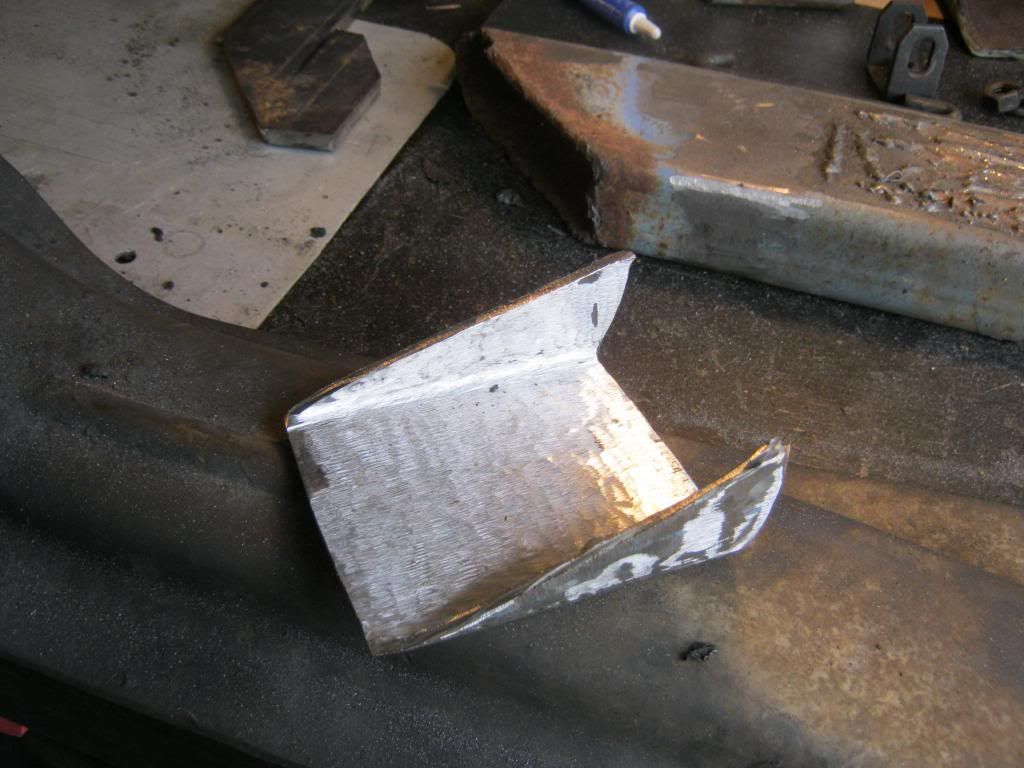

Unfortunately, since my welder still isn't acting right, I'm not able to make good looking welds, but I think at least they will hold. I laid the crossmember on the desk and used a piece of scrap metal to gain the correct height I needed for the new mounting pad.

​

A few more measurements, cuts and grinding wheels used up and I had this.

​

​

The process of putting the crossmember back under the car for more measuring seemed to be endless. Here I have it sitting on jackstands just under the framerails to get some general measurements for the bottom transmission mount stud hole. I used phillip head screwdrivers inserted into the crossmember and frame bolt holes to locate the correct positioning. In its correct orientation, the crossmember goes in at an angle and then slides on top of the frame rails.

​

After almost an entire day I finally have this ugly, yet hopefully functional crossmember. The test fit seemed to work. I hope nothing magically changes between now and tomorrow that would cause it to suddenly not line up again.

​



Actually I bet you would find a chevy wagon driveshaft of the correct year and trans (71-76) Might just fit right in as they are shorter than the BOP wagons



I thought they all used the same wheelbase for the Clamshells. It could be the Chev sedan driveshaft, though. There are all KINDS of possible donor vehicles that have strong enough drive shafts to handle the 455 engine. Any vehicle that had the large displacement big block available will have strong enough u-joints available. After all, there are about 6 or 7 different lengths of drive shafts for the pick up trucks alone! 2 sized for the full sized G.M. cars, 2 different lengths for the midsized models, PLUS the Sport Wagon and Vista Cruiser wagons, and that does not even count the different sized that could be had in the 77 - 79 full sized cars. There were 2 different lengths of them, too!



No they did not have the same wheelbase that's why the derby guys prefer the chevy's to the others. and I have news for you 2 for the full sized NO WAY! I had HUNDREDS of the full size GM's shafts in a pile for derby stock! Dude there are SCADS if different lengths of these shafts it would blow your mind. You had the 225 and 98's they were usually the same. then the chevy's were shorter as were hard tops and sedans different I KNOW if he looks he can find one I have a 73 chevy shaft that might just be right. Brandon what is the length difference from
the 700 and the 400,700 is longer?



Well, I put the new yoke into the back of the 700 but it wouldn't push all the way into the transmission. There was about two inches stick out of the rear of the trans and it seems the yoke had bottomed out. You can see from the surface rust that it never was in the original transmission that far either, but I saw on a video online that it is important that a yoke goes all the way into the transmission. I still have about 2 1/4 inches or 2 1/2 in the splines, so I think that's enough.

My driveshaft now measures it should be 64 1/2". I haven't found anything that size yet but I'm still searching. I'm going to have to go back to pull-a-part and get a gear selector for for the 700 because the one from my 400 is too small.

Brandon



Brandon it is VERY important where you are taking your measurement from on the shaft are you going rear end of shaft to the tip of the yoke? OR are you measuring U-joint eye to U-joint eye?



I'm going from the center of where each u-joint cap would be.



Good boy! i'll try and see if I still have that chevy shaft



Hey Killer. I measured my old shaft today and found that my original one is shorter than the new one I'll need. Since that is the case, I'm going to look into it and see if I can find a one piece, aluminum shaft from a truck and then have it shortened. Since shortening is easier than having one elongated, I thought this would work out nicely because it would allow me to keep my original in case I ever put the TH400 back in it as well as perhaps save a little bit in efficiency by reducing the rotating mass (one of my side goals is to eventually squeak every sliver of hiding mpg out of the car (yes, I know it's ridiculous to talk about mpg with a 455, but it's a challenge I've taken on out of curiosity and for long term fuel savings)).

The powder coater's finally finished with my trim. I dropped off the trailer hitch and picked it up. When I got it all sorted I found I was missing three pieces. After calling them they questioned whether they had received them all. I assured them they did and when they checked again they found two of the pieces. One of the pieces is still at large. I met with the clip-guy today that travels around to body shops and sells automotive clips. I believe, though I won't be sure until they arrive, that I was able to order all of the clips that I am missing to allow me to attach the woodgrain molding.

​

Due to missing clips and screws I have only been able to finish the tailgate so far. Earlier I had forgotten that the tailgate emblems had tabs on them, but then I realized that I thought this because I wasn't the one who took them off, April was. I watched her as she used the heat gun and peeled away an adhesive holding them on. In reality they had an adhesive as well as some press-in clips that held small tabs in place. I bought some 3M name plate adhesive strips and used an X-acto knife to trim away the extra. Finding the holes behind the woodgrain took a little bit of time but after finding one of them the others weren't too hard to locate.

​

Unfortunately, during some part of the powder coating process, the bottom piece of tailgate trim broke in half. Because this is stainless steel trim I assume the trim itself must have had a weak spot in this area. When I bought the trim from a 1974 Grand Safari parts car a while back I found that not many pieces interchanged. Only the doors and one piece on the front fender would transfer over to my car, however I also found that the top and bottom center pieces of tailgate trim would interchange so I was very fortunate that I ended up having a spare example of the trim piece that broke. Also, last week I found a NOS (new old stock, an original piece in General Motors' parts stock that was never sold) rear trim piece, which was missing when we bought the car, on the internet for sale. I bid on it and got it relatively cheap. It was a very fortunate find, because these pieces are rarely able to be found, especially for a '71 or '72. Today I went back to the powder coater's to take them the spare piece that broke as well as the new piece I got from the internet. They will strip and coat them to match my other pieces, as well as finish the other pieces they lost. I'm holding out hope they find the final piece that they lost.

​

​

Here is the spare, replacement piece I have, sitting under the broken piece. It was so hot today that when I took the camera outside it instantly condensed, so a few of the following pictures are a bit blurry and the colors aren't exactly true.

​

Here is the color of an original, NOS piece of trim. It was wrapped with a fake, light-colored woodgrain. Thought it doesn't show up as well in these pictures, everyone has mostly agreed the new color of the woodgrain trim looks much better with the colors of our car than the original would have. I spent a very long time at the powder coater's going through color books. This was the only color that came remotely close to looking good. At first I liked it, then when I saw the finished pieces and held one up to the car I wasn't really fond of it, but after seeing the entire rear of the car with it on in the daylight I changed my opinion again and it turned out looking very nice.

​

The clips I ordered for the woodgrain moldings will take about two weeks to come in. I'm looking forward to getting them on the car. Getting back to work on the transmission, I removed this vacuum line that used to go from the carburetor to the transmission, which I won't need anymore with the 700R4.

​

It was time to dig into the hardest part of all, handling the fabrication of the linkage for the 700R4 and achieving its correct geometry. Last week I ordered this digital caliper because the measurements must be extremely precise. Using the internet I was able to find methods of achieving the correct placement of the stud that the TV cable from the transmission will eventually attach to.

​

This is a copy of the page I have been using as reference for the proper geometry of the cable. In this picture, the cable is shown in a position that would be considered part-throttle. Closed and wide-open throttle are labeled, with wide open being 55 degree past the vertical 90 degrees and closed being 23 degrees (78 total minus the 55 forward) behind the vertical 90 degree mark. The distance from the center of the throttle shaft along the 23 degree line to where the hole needs to be can be between 1.125 and 1.094 inches. The rest of the diagram refers to the appropriate distance between the TV cable mount and the end of the cable, but since I am using an adjustable, universal cable, I don't have to concern myself with that part.

​

Before I begin any of the precision work I need to get a general idea of where the new hole will need to be. Since I knew the placement of the new hole would be slightly beyond the boundaries of the current arm I knew I would need to weld on new material, but I needed to know approximately how much and what shape. There is a tolerance of a few thousandths of an inch within the length of the hole from the center of the throttle shaft. There is a small indentation in the center of the throttle shaft but I double checked it with the caliper to ensure it was, in fact, the true center of the shaft. I could see that the hole would be slightly closer to the shaft than the existing one.

​

I didn't have a protractor and I was afraid that a simple, plastic one from the store may not have been exact enough for my needs. I went to my neighbor's house and he let me borrow two good straight edges and an angle finder.

​

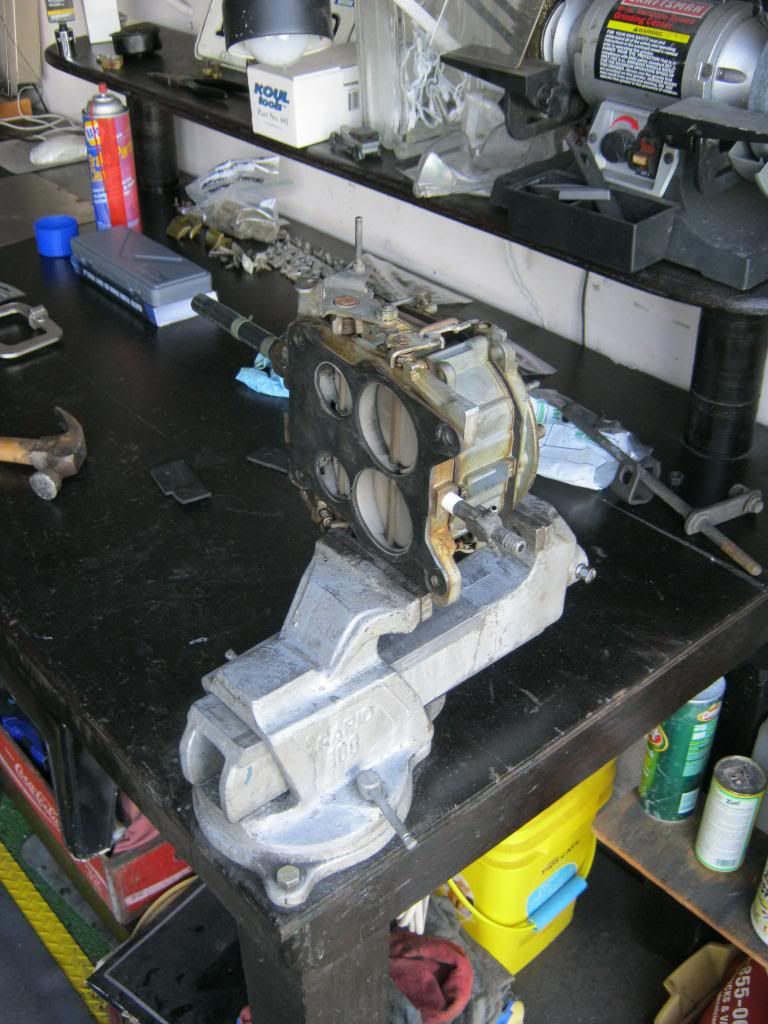

It took me a while to come up with a working method to achieve everything that I would have to do. I eventually came up with a plan that started with me unscrewing my vise and turning it around 180 degrees and getting the carburetor mounted in the vice relatively close to level as well as allowing the full range of motor of the the throttle shaft and butterflies.

​

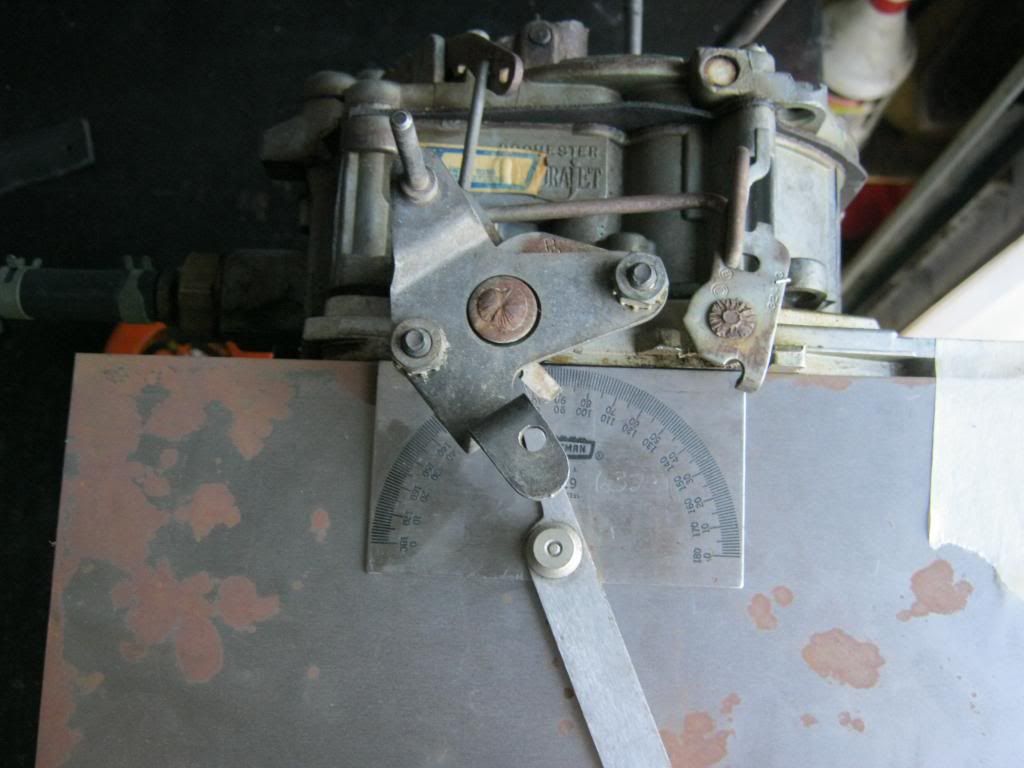

Then I placed a flat surface with a straight edge against the straight edge of the bottom of the carburetor. I was fortunate to find the exact right length of wood to allow a flat surface. This will serve as my flat surface for the angles I will later draw out as reference on a piece of paper. This is a temporary setup, but later I will need to secure them in place.

​

If you imagine a vertical line going through the middle of the throttle shaft and extending straight down, perpendicular to the imaginary horizontal line of the base of the carburetor, you would then use that vertical line as a guide to determine your angles. Since this vertical line is 90 degree (perpendicular) to the base plate of the carburetor, I will call it the "vertical 90 degree line." The hole needs to be 23 degrees to the right of the imaginary 90 degree vertical line. This gives it a total of 113 degrees, so that is what I set my dial to.

​

I then clamped two straight edges together, one on top of the other and with one extending past the other. I held these flush against the 23 degree angle and while keeping the top plate of the angle finder even against the base of the carburetor, moved it until the straight edges lined up exactly with the center of the throttle shaft.

​

It is along this line that the new hole will need to be made. Though I don't need to know exactly where at this time, I do know it will be somewhere slightly above the existing hole. This information will give me a good enough idea of where to weld on the extra material. I determined I need to add about 1/8" to the top and 1/2" to the right of the existing hole, just to be safe and give myself plenty of material to drill. I can then shape it later and remove any excess.

​



geez Brandon...no kidding man....you get more done in a week than I do in a year
