1977 Plymouth Fury Wagon

Discussion in 'The Welcome Wagon' started by dacflyer, Dec 5, 2013.

  1. dacflyer

    dacflyer Active Member

    Joined:
    Dec 5, 2013
    Messages:
    69
    Likes Received:
    8
    Trophy Points:
    35
    Wagon Garage:
    1
    Location:
    Fayetteville NC
    hi all. my 1st post here.
    HELP !

    i found the site here while searching the net for parts for my wagon..

    i had some bad luck with my wagon. someone decided to break out my rear back window. i was heart broken. my wagon is not the best looking right now
    ( 1/2 rust 1/2 dust ) but it runs very well.
    i really wanna restore it. but i cannot find any wagon window rubbers.
    but mainly need another glass.. i have called the local glass shops, and no one has anything.. i really need a new or used glass..
    does anyone have a source or know of where i can possibly find one ?
    and the misc. parts that holds it on place.
    ( guides - plastic blocks that attach to the glass )

    also any sources that would have the rear window rubbers / seals

    i love my old wagon, someone help me save it.. ( restore it too )

  2. AK27

    AK27 Well-Known Member

    Joined:
    Jul 16, 2012
    Messages:
    2,906
    Likes Received:
    85
    Trophy Points:
    110
    Location:
    Fairview, Illinois
    Welcome dacflyer! Sorry to here about your back window. Wish I could help but all my stuff is GM.

  3. dacflyer

    dacflyer Active Member

    Joined:
    Dec 5, 2013
    Messages:
    69
    Likes Received:
    8
    Trophy Points:
    35
    Wagon Garage:
    1
    Location:
    Fayetteville NC
    thanks, i figure if i have any luck it will be here..

  4. snooterbuckets

    snooterbuckets Well-Known Member

    Joined:
    Aug 4, 2009
    Messages:
    3,742
    Likes Received:
    34
    Trophy Points:
    106
    Location:
    Cranford, New Jersey
    WElcome dacflyer. Sounds like you're a wagon nut, just like the rest of us here. I hope someone can help you in your search. I can't stand vandals.

  5. Dewey Satellite

    Dewey Satellite New Member

    Joined:
    Oct 30, 2011
    Messages:
    4,367
    Likes Received:
    9
    Trophy Points:
    0
    Wagon Garage:
    1
    Location:
    Ogden, Utah
    Welcome Dacflyer! Good luck in your parts search. :Welcome:

  6. dacflyer

    dacflyer Active Member

    Joined:
    Dec 5, 2013
    Messages:
    69
    Likes Received:
    8
    Trophy Points:
    35
    Wagon Garage:
    1
    Location:
    Fayetteville NC
    thanks guys.. the window was busted out, but nothing was taken Grrr
    even if they wanted to take anything all they had to do was open the door..
    i seriously doubt it busted from thermal shock.. i mean the window is over 36 yrs old, it has had plenty of times to fail if that was the case.

  7. fannie

    fannie Well-Known Member

    Joined:
    Aug 2, 2010
    Messages:
    12,035
    Likes Received:
    1,296
    Trophy Points:
    698
    Wagon Garage:
    3
    Location:
    Nova Scotia, Canada
    I've sent a Private Message to a member who might be able to help with your problem. However he isn't on here every day so I think you might want to post this same request in the General Station Wagon Discussion

    http://www.stationwagonforums.com/forums/forumdisplay.php?f=6

    not every member reads the Welcome Wagon.


    :Welcome: to SWF

    Last edited: Dec 7, 2013
  8. dacflyer

    dacflyer Active Member

    Joined:
    Dec 5, 2013
    Messages:
    69
    Likes Received:
    8
    Trophy Points:
    35
    Wagon Garage:
    1
    Location:
    Fayetteville NC
    thanks for the info.. i'll post there also.. thanks..

    NOTE** i think i found a rear window, but i'll still be in the market for window rubbers

  9. fannie

    fannie Well-Known Member

    Joined:
    Aug 2, 2010
    Messages:
    12,035
    Likes Received:
    1,296
    Trophy Points:
    698
    Wagon Garage:
    3
    Location:
    Nova Scotia, Canada

    Awesome news, good luck with the window rubbers. :)

  10. Stormin' Norman

    Stormin' Norman Well-Known Member

    Joined:
    May 30, 2007
    Messages:
    19,625
    Likes Received:
    34
    Trophy Points:
    813
    Wagon Garage:
    1
    Location:
    Winnipeg, Manitoba, Canada
    Let's see if this helps:

    Metro Moulded Parts has one of the best displays of the weatherstrip and seal cross sections on the internet, so if you have a look at yours (take a picture and check it while you're checking their site:

    http://metrommp.com/

    Their Plymouth catalogue does look like its only for their 1970s hot cars, but some of the Fury and larger models are listed - you'll need to know whether yours is a Mopar A, B, C, etc. body type.

    Fairchild is a monster corporation, Automotive rubber parts are one of their subsidiaries: You can download their catalogues from here:

    http://www.automotivefairchild.com/resources.html

    Steele Rubber also has a nice line of seals and strips. I'd email them once you're ready:

    http://www.steelerubber.com/restoration-parts

    Also check out the links on our own site (Stationwagon Directory, at the bottom):
    http://www.stationwagonforums.com/forums/local_links.php

    And... for your entertainment and drooling pleasure:
    http://www.lov2xlr8.no/brochures/mopar/77chrpl/bilder/16.jpg

    Check out his other brochures:
    http://www.lov2xlr8.no/broch1.html

    And all the other gorgeous pics of automotive history:
    http://www.lov2xlr8.no/

    Hope that helps. Some kids shot my 3 back windows (tailgate and side windows) back in 2002, with a BB Gun. 3 months driving around with plastic. Then I built a 7' fence all around, for only $4,000!!! I know I how feel. :taz: :slap:

    Norm

  11. the Rev

    the Rev senior junior Charter Member

    Joined:
    Aug 24, 2006
    Messages:
    9,329
    Likes Received:
    51
    Trophy Points:
    232
    Wagon Garage:
    3
    Location:
    BC,canada
    :Welcome: Dac
    hows the hunt going?

  12. dacflyer

    dacflyer Active Member

    Joined:
    Dec 5, 2013
    Messages:
    69
    Likes Received:
    8
    Trophy Points:
    35
    Wagon Garage:
    1
    Location:
    Fayetteville NC
    well i think i have found me a glass. but in the meantime i was cleaning out the busted glass and the associated parts that attach to it.. i cleaned up most of the parts, they were in different stages of rust, but not too bad.
    there is some parts that attach to the sides of the glass..some kind of glides and slides.
    one has a damaged spring, and another has chipped plastic on it.

    does anyone happen to have a diagram of this rear door/window ? and is there a source for rear window parts ? i am sure other wagons use them also..

  13. dacflyer

    dacflyer Active Member

    Joined:
    Dec 5, 2013
    Messages:
    69
    Likes Received:
    8
    Trophy Points:
    35
    Wagon Garage:
    1
    Location:
    Fayetteville NC
    guys i need help.. i found a glass but the hard ware i have is not in good order.
    i have searched all that i can search and have had no luck to find any window hardware.
    i am at the point that i am willing to buy the whole door if i could find one. but it is impossible for me to find any old junk yard outside of my area..can any of you guys help me search ?

    the plymouth fury has a 9 hole window, this is what i have..there is 4 sliders on the sides of the glass i need. 2 are solid, and the other 2 are having spring sliders on them,
    and the bottom brackets ( regulators? ) the plastic disk spacers are broke.
    plus there is some rubber bumpers that protect the glass from slamming around when the door is closed.
    i have tried to contact all of the recommended sites, no luck at all for hardware.
    i have contacted all the auto glass companies i could think of.. Safelite glass will not even return my calls :(
    i really need help, i know there is other cars that used the same door such as the Monaco, and the sport suburban, and a few others.. the grand fury glass wont work, it looks the same size glass and all, but it only has 4 holes, no side glass hardware.
    any help is appreciated..i am at a dead end right now...

  14. PlymouthSportSurburban

    PlymouthSportSurburban New Member

    Joined:
    Jun 20, 2010
    Messages:
    44
    Likes Received:
    6
    Trophy Points:
    0
    Wagon Garage:
    1
    Location:
    The Netherlands (Holland)
    [​IMG]

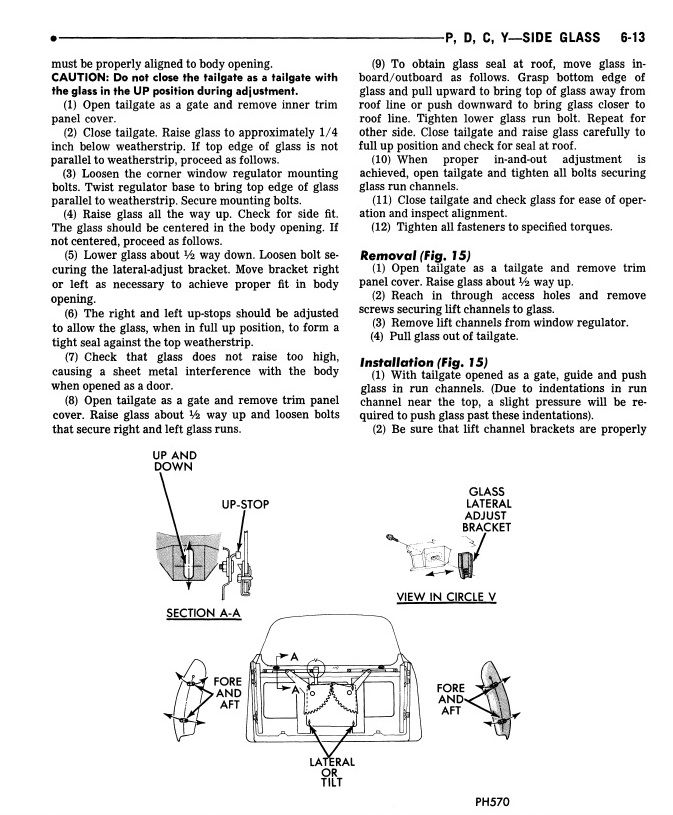

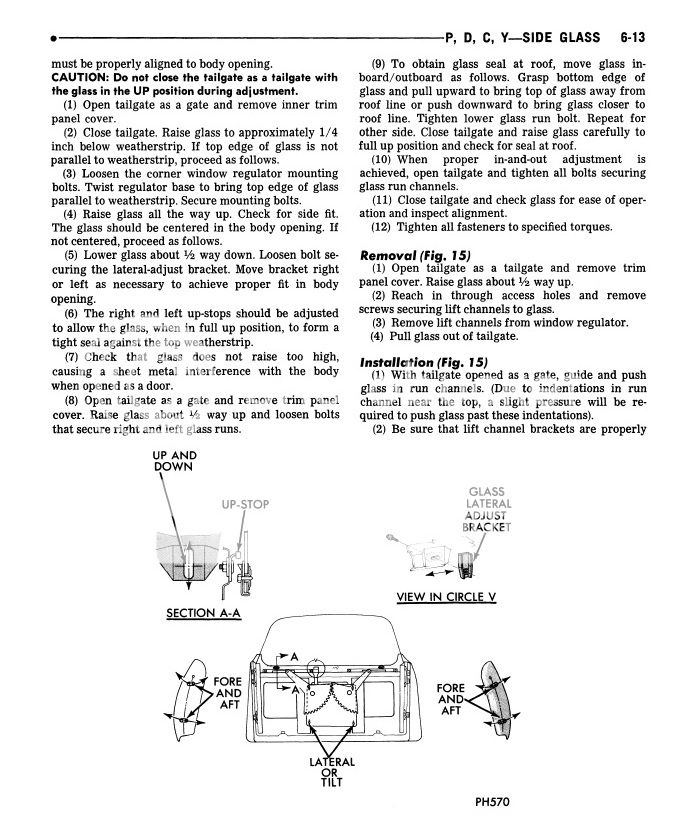

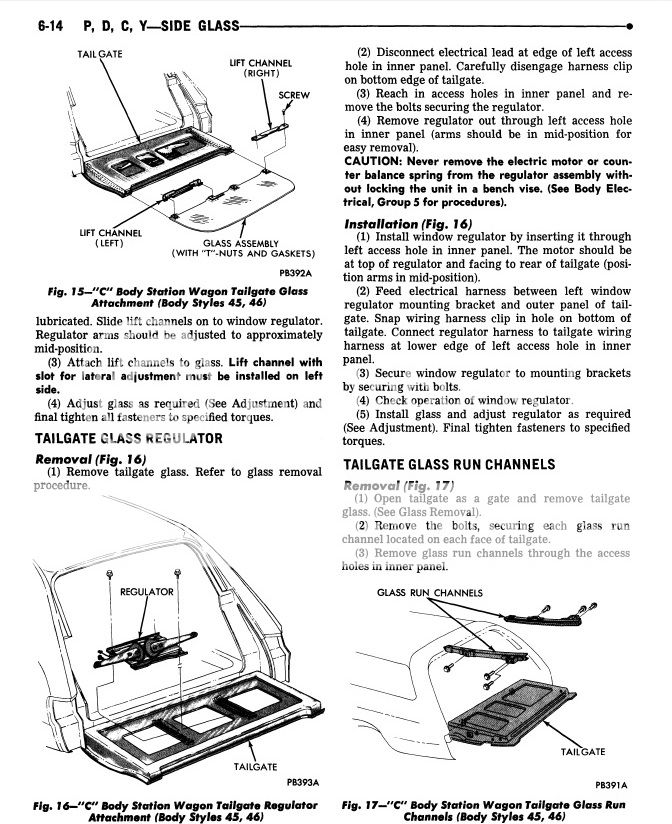

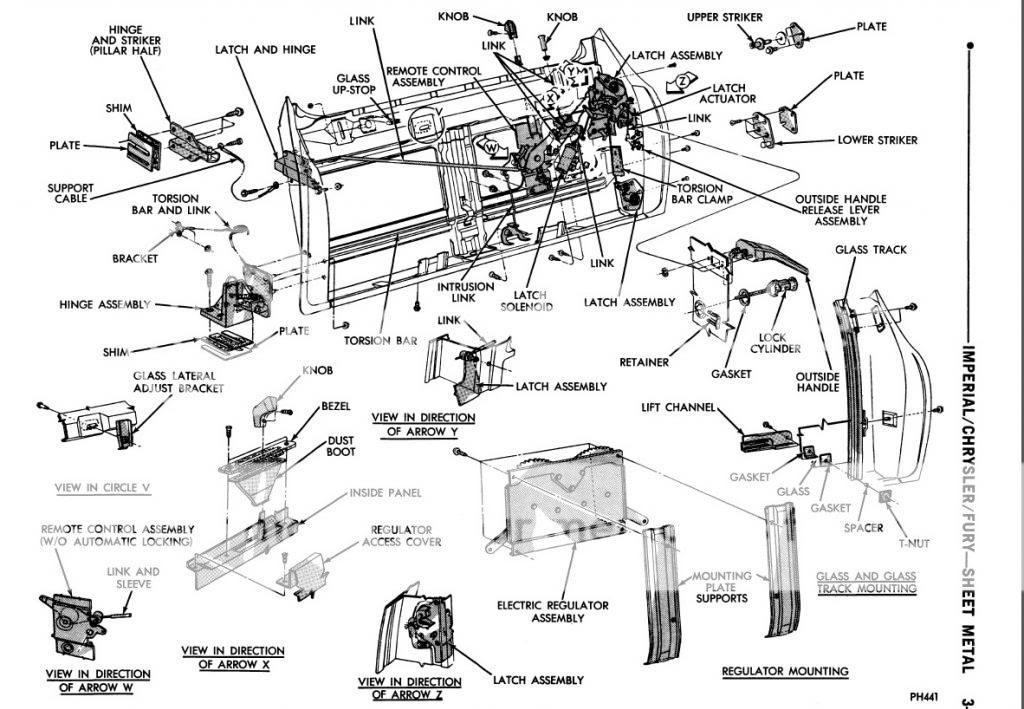

    this is from my 74 manual think doors are pretty much the same?

  15. PlymouthSportSurburban

    PlymouthSportSurburban New Member

    Joined:
    Jun 20, 2010
    Messages:
    44
    Likes Received:
    6
    Trophy Points:
    0
    Wagon Garage:
    1
    Location:
    The Netherlands (Holland)
